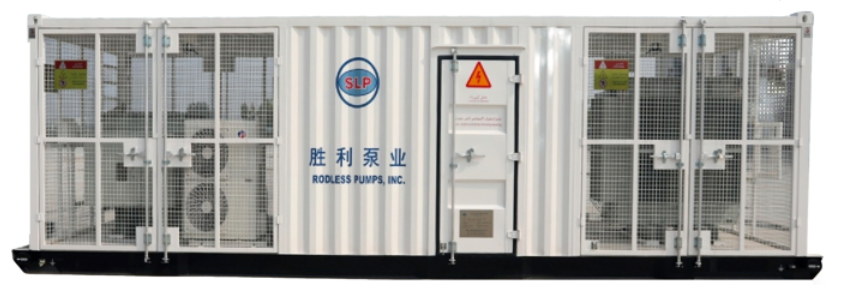

Ground equipment - submersible electric pump frequency conversion intelligent control station (6-pulse)

Model number

rated

voltage

(kV)

rated

power

(kW)

rated

current

(A)

Overall dimensions（L×W×H）

weight

Variable Frequency

Cabinet

skid-mounted

Variable

Frequency Cabinet

skid-mounted

QYBKZII-0.38/145

0.38

75

145

1250×800×1850

4500×2500×2600

760

2540

QYBKZII-0.38/215

0.38

110

215

1250×800×1850

4500×2500×2600

795

2590

QYBKZII-0.38/305

0.38

160

305

1250×800×1850

4500×2500×2600

840

2650

QYBKZII-0.38/380

0.38

200

380

1250×800×1850

4500×2500×2600

896

2720

QYBKZII-0.38/480

0.38

250

480

1250×800×1850

4500×2500×2600

955

2810

QYBKZII-0.38/600

0.38

315

600

1250×800×1850

4500×2500×2600

1012

2950

QYBKZII-0.38/720

0.38

400

720

1250×800×1850

4500×2500×2600

1145

3120
