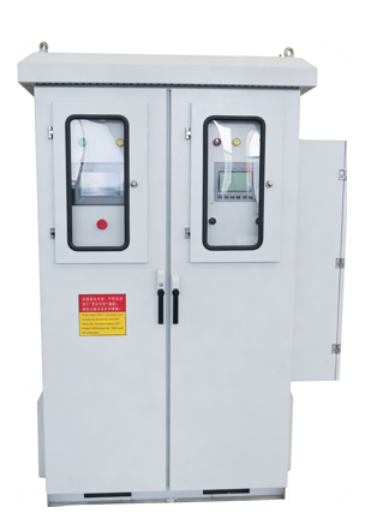

Submersible permanent magnet synchronous motor servo control cabinet (low voltage)
Model number | rated voltage(kV) | rated power(kW) | rated current(A) | size | weight |
mm | in | Kg | lb |
TQYSCD380V-75kW | 0.38 | 75 | 145 | 1300×900×1850 | 51×35×73 | 360 | 794 |
TQYSCD380V-110kW | 0.38 | 110 | 215 | 1300×900×1850 | 51×35×73 | 410 | 904 |
TQYSCD380V-160kW | 0.38 | 160 | 305 | 1300×900×1850 | 51×35×73 | 460 | 1014 |
TQYSCD380V-200kW | 0.38 | 200 | 380 | 1500×1000×1850 | 59×39×73 | 490 | 1080 |
TQYSCD380V-250kW | 0.38 | 250 | 450 | 1500×1000×1850 | 59×39×73 | 560 | 1235 |
TQYSCD380V-315kW | 0.38 | 315 | 600 | 1500×1000×1850 | 59×39×73 | 640 | 1411 |
