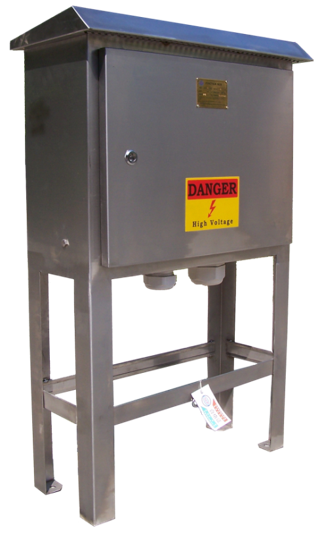

junction box
The function of the junction box is to connect the submersible power cable between the control cabinet and the wellhead,
provide a testing point for underground circuit testing, and prevent flammable gases in the oil well from entering the control
cabinet through the cable, which may cause a fire or explosion.
Model number | rated voltage (V) | rated current (A) | size | weight |
mm | in | kg | Ib |
JXH 3-100 | 3000 | 100 | 370×282×640 | 15×11×25 | 26 | 57 |
JXH H1 3-100 | 3000 | 100 | 600×260×760 | 24×10×30 | 31 | 68 |
JXH H2 5-200 | 5000 | 200 | 650×290×1010 | 26×11×40 | 35 | 77 |
